COMMSCOPE
MB180

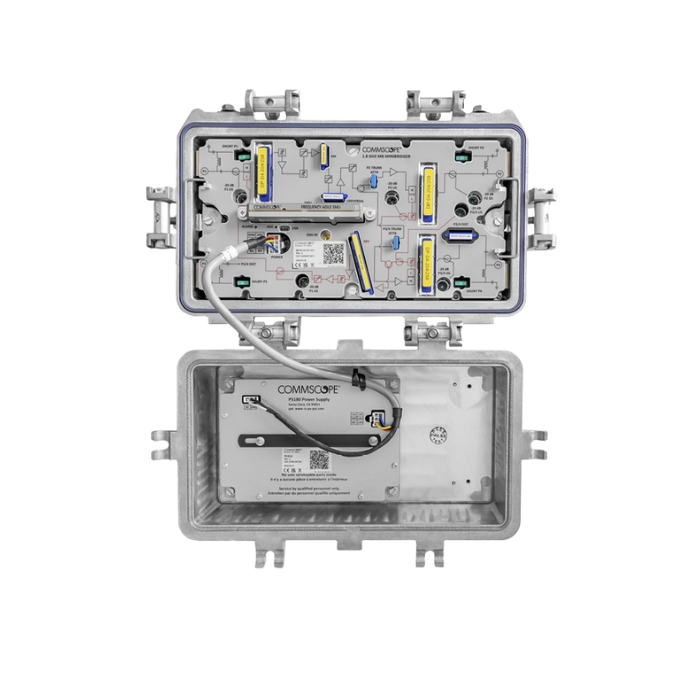

1.8 GHz MiniBridger Amplifier
The STARLINE MB180 1.8 GHz MiniBridger Amplifier delivers DOCSIS 4.0 performance with up to 1.8 GHz downstream and 684 MHz upstream. Its modular, field-upgradable design supports legacy 1.2 GHz networks, simplifies frequency split upgrades, and enables electronic setup of gain, tilt, and attenuation for minimal operational disruption.
With dual pilot AGC, two driven RF outputs, and enhanced upstream stability, the MB180 ensures smooth network evolution, service continuity, and full bandwidth utilization for modern HFC networks.
Features:
- Supports 1.8 GHz Downstream and up to 684 MHz Upstream for DOCSIS® 4.0
- Electronic setup and control for easy activation and maintenance
- Modular RF Electronics with field-upgradable frequency split options
- Compatible with legacy 1 GHz and 1.2 GHz MiniBridger housings via upgrade kit
- Expanded return path bandwidth up to 684 MHz
- Dual pilot, frequency-agile AGC via SMU module; reverts to gain hold if pilot is lost
- Two driven RF outputs; optional Splitter or Directional Coupler plug-ins
- Supports legacy 1.2 GHz networks
