MAXCOM

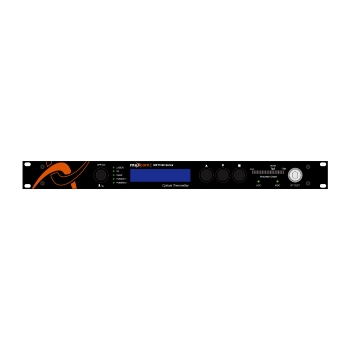

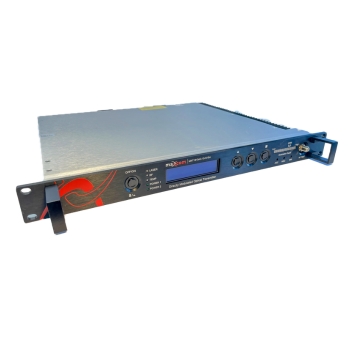

MX-T1500E

1550 nm optical transmitter

The Maxcom MX-T1500E is a 1550 nm direct modulation optical transmitter designed for FTTx applications. It features a high-linearity, low-chirp DFB laser with built-in pre-distortion, AGC, APC, and ATC for enhanced signal quality.

Ideal for transmitting digital QAM CATV and DOCSIS RF signals over fiber networks up to 20 km, typically with an EDFA. It is used when the QAM source is located at the EDFA site, ensuring optimal signal amplification and transmission performance.

Features:

• Dual power supply options: AC or -48V DC
• Low-chirp, high-linearity DFB laser with chirp compensation
• Dual-module RF driver with efficient laser pre-distortion
• Automatic temperature control for extended laser life
• Automatic OMI control, AGC, and MGC
• Modulation status display
• Standard optical output of +6 dBm
• Designed for all-digital (QAM) RF signal transmission
• Ideal for RFoG or RF Overlay networks up to 20 km with high MER
