MAXCOM MX T EDFA Series

Optical Transmission Platform

MX T EDFA Series- Mainpic
MX T EDFA Series- Lightboxpic 1
MX T EDFA Series- Lightboxpic 2

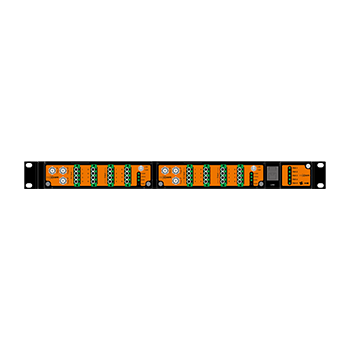

The MAXCOM MX-T-EDFA is a modular optical transmission platform combining a 1550 nm optical transmitter and EDFA in a compact 1 RU chassis. It is designed for RF Overlay, RFoG and FTTx networks with support for GPON, EPON and XG-PON technologies, providing up to +20 dBm optical output power per port.

Features:

    • Integrated 1550 nm optical transmitter and EDFA
    • Pluggable modular design
    • Compatible with GPON, EPON and XG-PON
    • Supports RF Overlay and RFoG
    • Up to 16 optical output ports per module
    • Up to +20 dBm optical output power per port
    • Adjustable optical output power
    • LC/APC fiber connectors
    • Dual power supplies with 1+1 backup
    • Web interface and SNMP management
    • RJ45 communication interface
    • USB interface
    • Optional external LED controller
    • 1 RU, 19-inch rack-mount chassis
    • 483 × 350 × 44 mm chassis dimensions
