Compact TV Headends

ASTRO

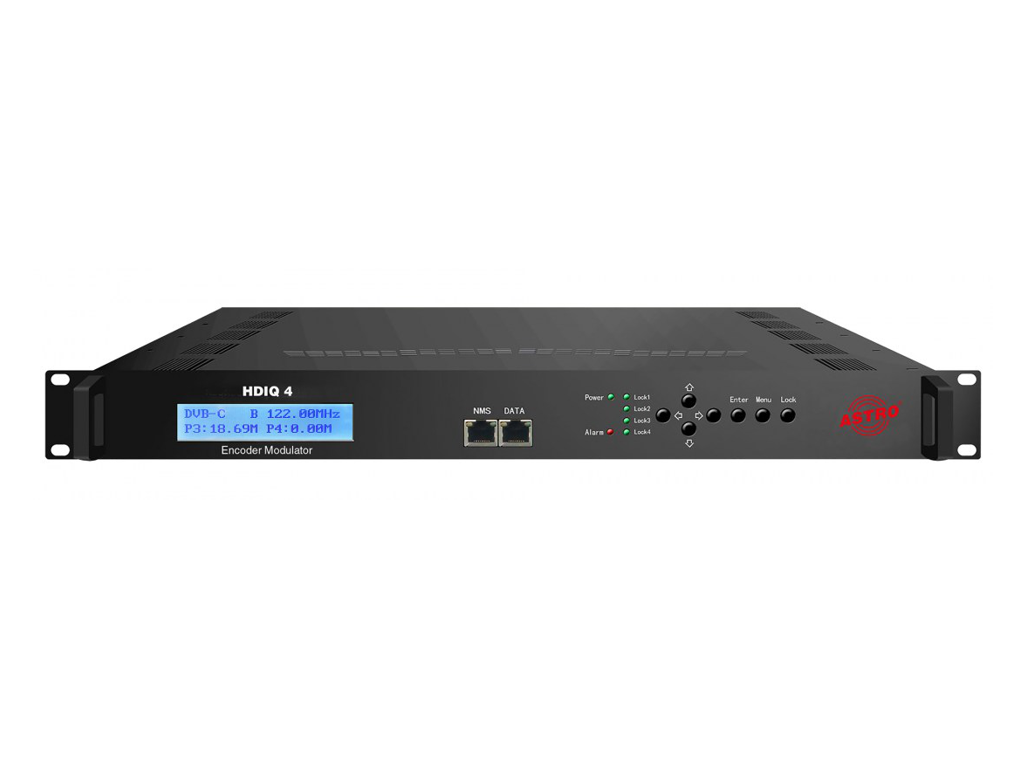

HDIQ 4

HDMI to IP and QAM Converter

Features:

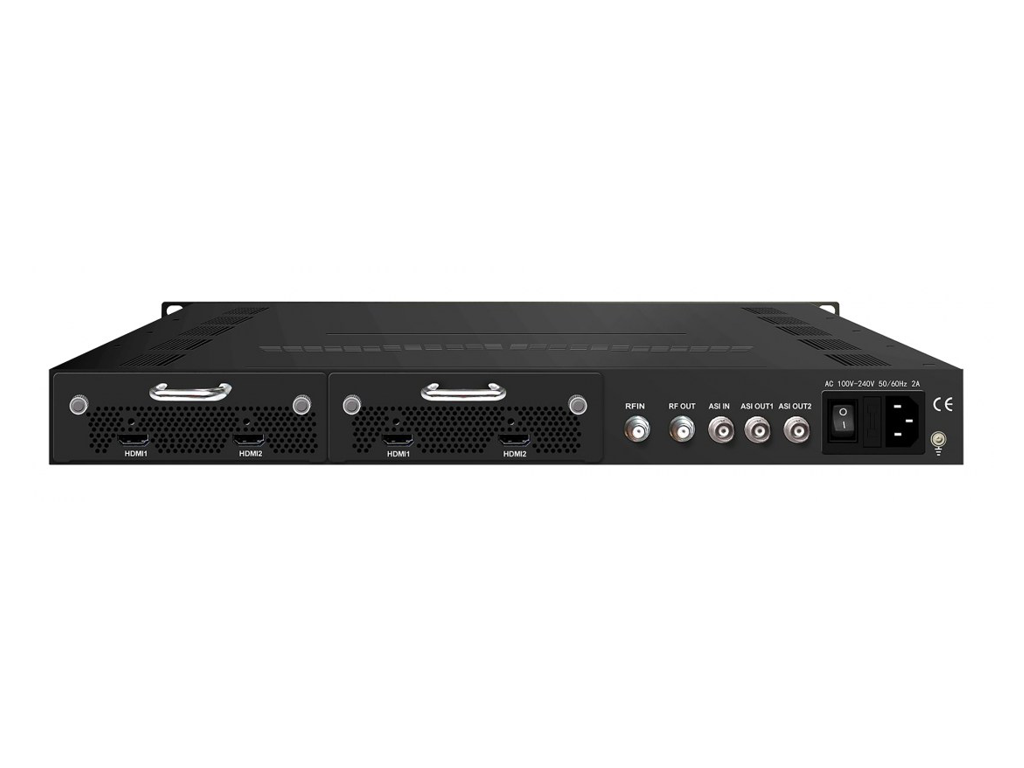

• 4 HDMI inputs
• 1 DVB-C output, 1-4 output frequencies in the range 30-960 MHz
• IP output (4x SPTS, 1x MPTS) via UDP, RTP / RTSP
• MPEG-2 & MPEG-4 AVC / H.264 Video Encoding
• MPEG-1 Layer II, MPEG-2 AAC, MPEG-4 AAC, AC-3 2.0 Audio Encoding
• Up to 1920x1080@50P / 60P (MPEG-4 AVC/H.264)
• Up to 1920x1080@50I/60I (MPEG-2 HD)
• NIT and LCN generating
• Excellent signal parameters (MER ≥42 dB, output level up to 97 dBµV)
