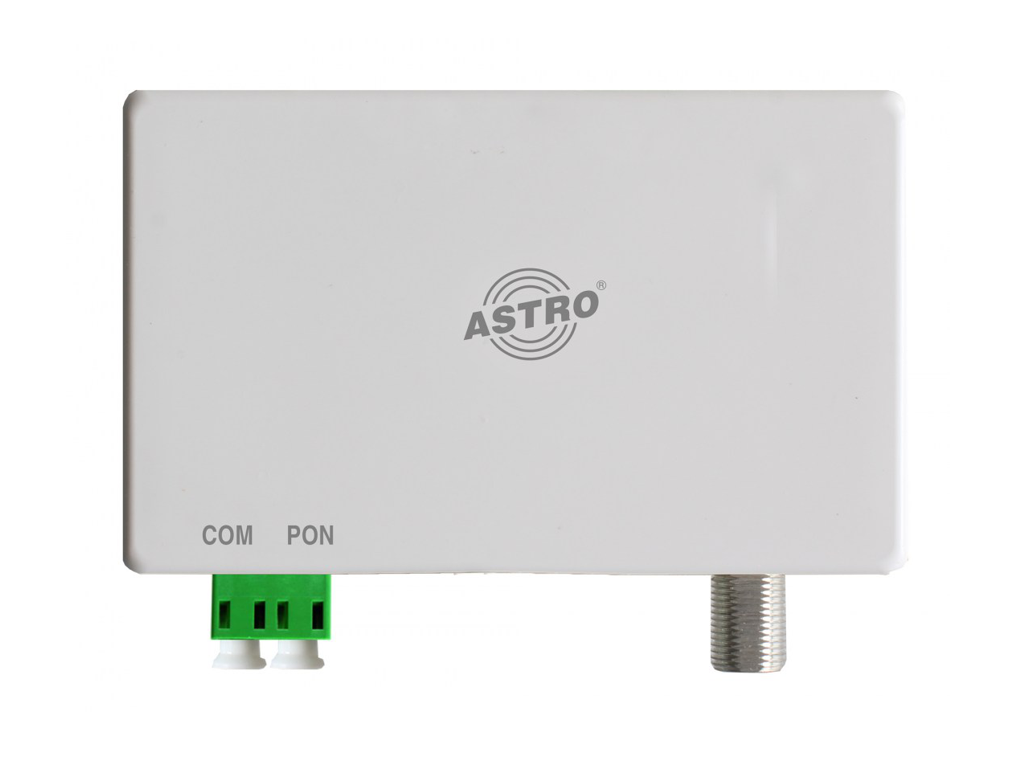

ASTRO OFN45C WD ALC
Compact Optical CATV Receiver
Features:
- Forward path optical receiver for CATV with GPON XG PON XGS PON loop through port
- CATV wavelength (pass band): 1540-1560 nm
- GPON / XG PON / XGS PON loop wavelength: 1260-1330 nm / 1480-1500 nm / 1575-1580 nm
- RF frequency range 45-1218 MHz
- RF Level: ≥ 76 dBµV with AGC control in range of optical input power of 8 dBm - +2 dBm
- Very high RF performance MER and BER
- 3 color LED indication for easy input power range detection
- AC adapter plug in power supply 12 VDC / 0.5 A with ECO Certificate
- Low power consumption ≤ 2W
- Compact plastic housing
