OMK-35V2, OMK-38V2, OMK-36V2

SmartPocket V2 Optical Test Kits

OMK-35V2, OMK-38V2, OMK-36V2

A family of pocket-sized and low-cost optical power meter plus optical light source kits for the installation and maintenance of single mode and multimode fiber optic networks.


The VIAVI OMK-3xV2 optical test kits are a range of pocket-sized and rugged instruments for installing and maintaining single mode (SM) and multimode (MM) fiber optic networks. All test kits are equipped with an optical power meter and a dual or quad-wavelength optical light source for power level, insertion loss measurements, and continuity checks.


Benefits

  • Dependable, German design
  • Designed with outdoor environment in mind
  • Low power consumption for extended continuous use
  • Instant On – no boot time
  • High-Visibility backlit graphical display with context-sensitive softkey
  • No setup ‘OptiChek’ measurement mode
  • Fast Auto-λ, Multi-λ mode (~ 1 sec)
  • Clear pass/fail information
  • Automatic upload of results via VIAVI Mobile Tech application


Key Features

  • Broadband power meter with Dual SM or Quad SM/MM sources
  • Fiber Tracing – detecting optical light source tone(s)
  • Storage for over 1000 test results and PC download capability
  • Bluetooth low energy connectivity to the VIAVI Mobile Tech App
  • 4-way powering - alkaline AA, NiMH AA rechargeable, AC power adapter and power over USB
  • 3-year recalibration period


Applications

  • Measuring optical power levels and link insertion loss for both SM and MM networks
  • Network Build and Maintenance for Enterprise/LAN, Access and Metro (LAN/WAN), FTTx (e.g. Home/Antenna)
  • Standard and high-power level tests for use in telecom, CATV, and military applications


Packages

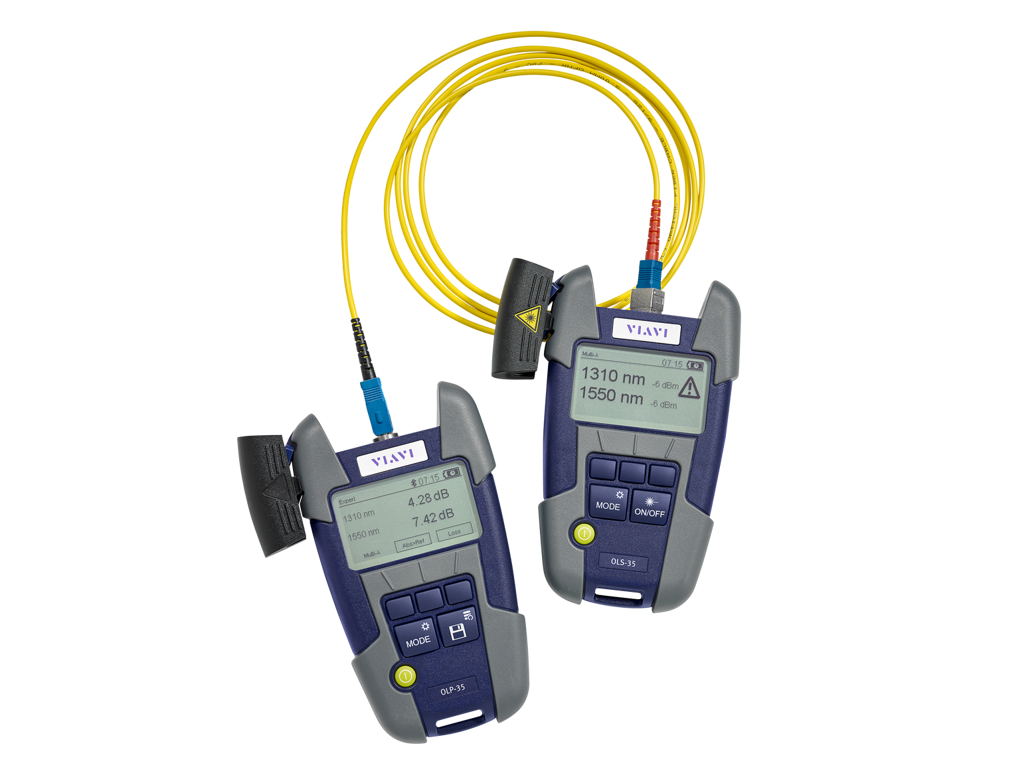

  • The OMK-35V2 is a SM kit with an OLS-35V2 and an OLP-35V2 for Telecom applications.
  • The OMK-38V2 is a high power SM kit with an OLS-35V2 and an OLP-38V2 for CATV and amplified DWDM applications up to +26 dBm.

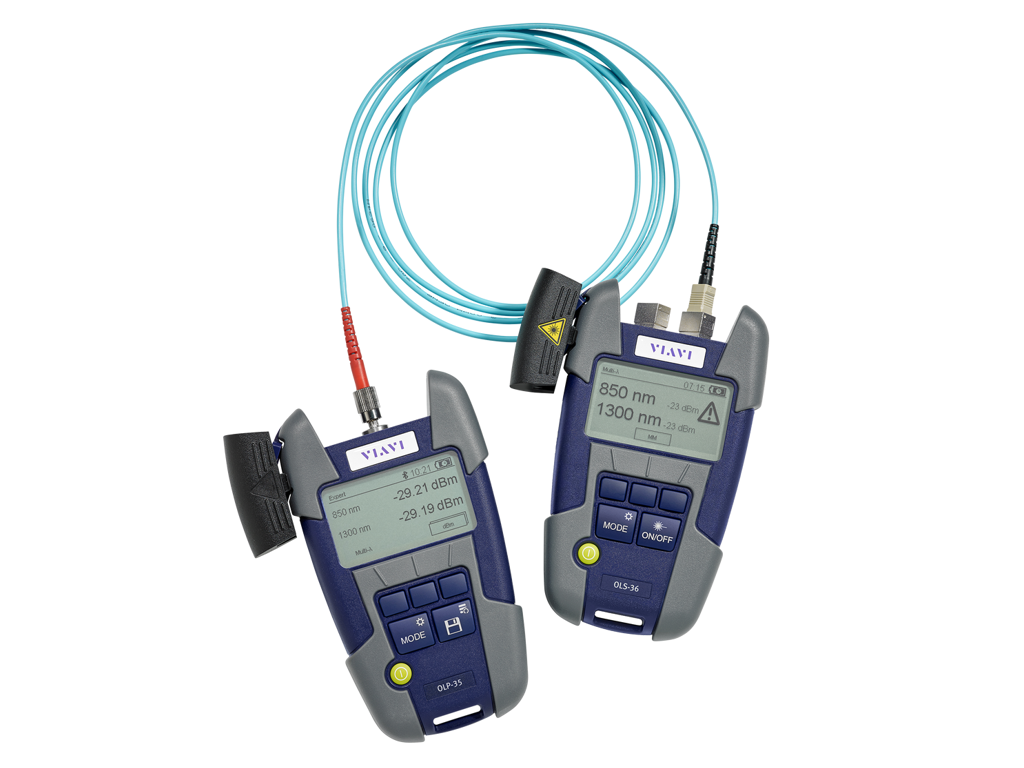

  • The OMK-36V2 is a quad SM/MM kit with an OLS-36V2 and an OLP-35V2 for Enterprise LAN / WAN applications.

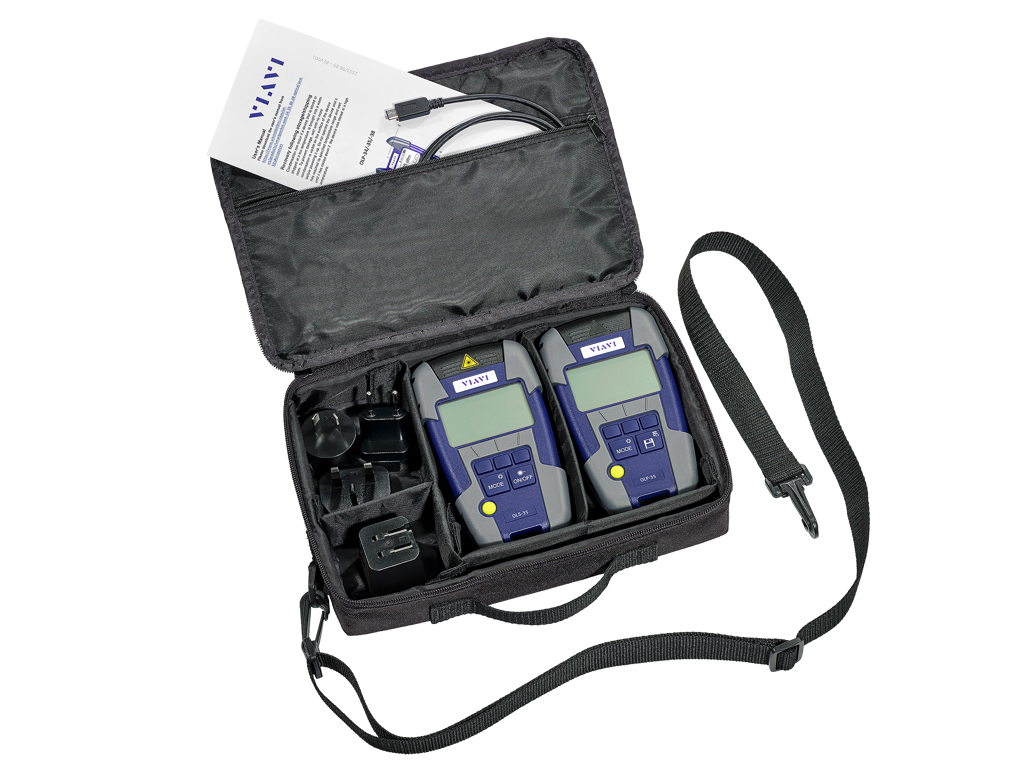

All Optical Test Kits include accessories: VIAVI Light Source, VIAVI Power Meter, soft bag, universal AC power adapter. Neck streps, bag, dry AA-batteries, quick start guide are included for each Source and Power Meter.
