OLP-35V2, OLP-35SC, OLP-38V2

Broadband Power Meters

The VIAVI OLP-3xV2 are a range of broadband power meters (PM) for quick, easy, and convenient measurement of optical power levels and loss in fiber networks. Easy-to-use for technicians at any skill level SmartPocket V2 broadband PM complement VIAVI optical light sources (OLS) for insertion loss and continuity testing in both single-mode and multi-mode networks in all environments.

Benefits:

• Dependable, German design
• Designed with outdoor environment in mind
• Low power consumption for extended continuous use
• Instant On – no boot time
• High-Visibility backlight graphical display with context-sensitive softkeys
• No setup “OptiChek” measurement mode
• Fast Auto-λ, Multi-λ mode when paired with SmartPocket V2 optical light sources
• Clear pass / fail information
• Automatic upload of results via VIAVI Mobile Tech App

Features:

• 1 nm incremental wavelength settings
• Universal optical interface supports all 2.5 mm with option for 1.25 mm connectors
• Fiber Tracing – detecting optical light source tone(s) generated by SmartPocket V2 optical light sources
• Storage for over 1000 test results and PC download capability
• Bluetooth connectivity to the VIAVI Mobile Tech App
• 4-way powering - alkaline AA, NiMH AA rechargeable, AC power adapter and power over USB
• 3-year recalibration period

Applications:

• Measuring optical power levels and link insertion loss for both single-mode and multi-mode networks
• Network Build and Maintenance for Enterprise / LAN, Access and Metro (LAN / WAN), FTTx (e.g. Home/Antenna)
• Standard and high-power level measurement

Products:

• The OLP-35V2 (InGaAs) is optimized for standard telecommunication networks and multi-mode or single-mode applications
• The OLP-35SC (InGaAs) provides the same capabilities as the OLP-35V2 and comes with a fixed SC adapter

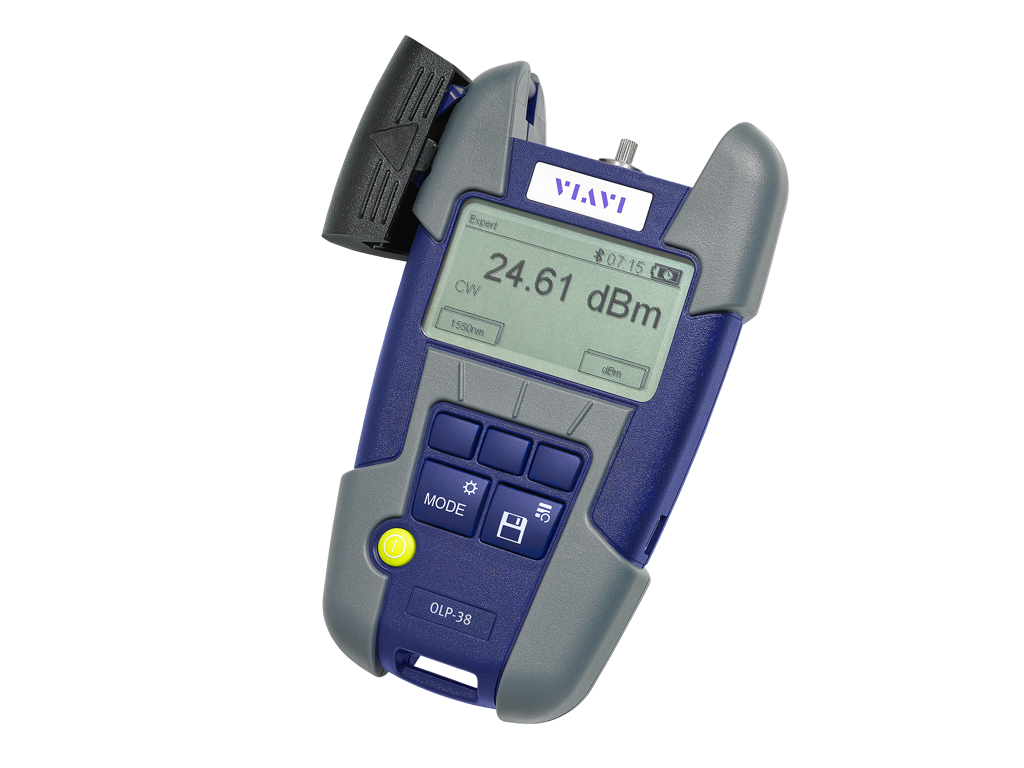

• The OLP-38V2 (filtered InGaAs) is a higher-power version (up to +26 dBm) for CATV HFC (with analogue RF transmission) or amplified DWDM systems applications
