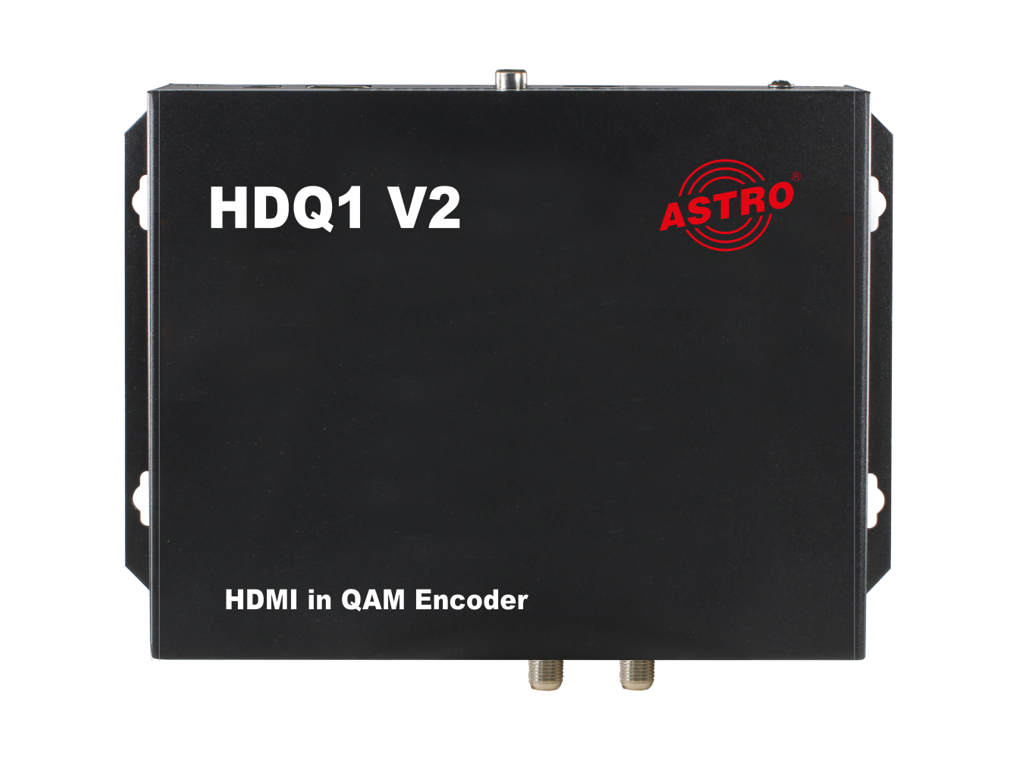

HDQ 1 V2

Stand-alone 1-way HDMI in QAM Encoder

HDQ 1 V2

Feeding a HDMI signal into a TV environment – no problem with the new HDQ1 V2

This unit is very suitable for converting HDMI signals from e. g. cameras, Blue Ray players, notebooks or other output devices with HDMI output into a QAM channel. This use is common in hotel environments, hospitals, restaurants, retirement homes and places like that. The HDQ1 V2 can easily be operated and configured via a web interface. The output signal is MPEG 2 coded and can be displayed even on older or BEWATEC devices in hospitals. An external power supply unit is in the scope of delivery.


  • Input: HDMI
  • MPEG 2 Encoder
  • Aspect ratio 16 : 9
  • Bit rate: 1,000 - 20,000 Mbps
  • Output: QAM via F-jack
  • MER: ≥ 35 dB
  • RF frequency range: 100 - 1,000 MHz
  • RF output level range: 46 - 93 dBµV
  • Symbol rate: 3,000 - 7,000 kBd
  • Power supply: 12 V DC via external power supply unit (included)
  • Dimensions: 203 x 144 x 52 mm
  • Wall mounting
  • Weight without power supply unit: ca. 550 g
