VIAVI

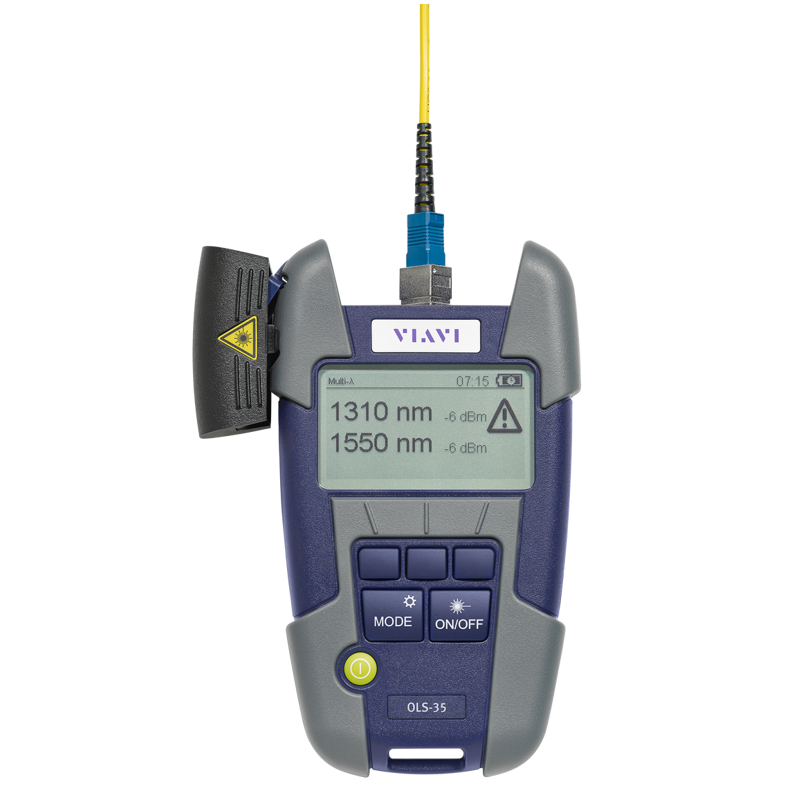

OLS-34V2, OLS-35V2, OLS-36V2, OLS-38V2
Optical Light Source
SmartPocket V2 OLS are ideal tools to complement the OLP-3xV2 optical power meters for insertion loss and continuity testing in both single-mode (SM) and multi-mode (MM) optical fiber networks. Robust and compact they fit perfectly in your pocket.
Benefits:
- Designed with outdoor environment in mind
- Low power consumption for extended continuous use
- Instant On – no boot time
- High-Visibility backlight graphical display with context-sensitive softkeys
- Fast Auto-λ, Multi-λ mode when paired with SmartPocket V2 optical power meters
Features:
- Measuring optical power levels and link insertion loss for both single-mode and multi-mode networks when used with Optical Power Meters
- Network Build and Maintenance for Enterprise / LAN, Access and Metro (LAN / WAN), FTTx (e.g. Home / Antenna)
Applications:
- Combines up to 4 wavelengths in one instrument (single-mode + multi-mode)
- Dual wavelength single-mode (1310 / 1550 nm)
- Quad wavelength single-mode (1310 / 1550 nm) and multi-mode (850 / 1300 nm)
- Fiber Tracing – generating light source tone(s) for detection by SmartPocket V2 optical power meters
- 4-way powering - alkaline AA, NiMH AA rechargeable, AC power adapter and power over USB
- Switchable optical adapter versions available for maximum flexibility
Products:
- The OLS-34V2 covers all standard dual wavelength multi-mode telecommunication network applications with 850 / 1300 nm
- The OLS-35V2 covers all standard dual wavelength single-mode telecommunication network applications with 1310 / 1550 nm
- The OLS-36V2 quad-wavelength solution covers both multi-mode and single-mode wavelengths (850 / 1300 and 1310 / 1550 nm)
- The OLS-38V2 covers all standard tri wavelength single-mode telecommunication network applications with 1310 / 1550 / 1625 nm
