ARRIS / AURORA
HT3580H

Quad-Density Full Spectrum DWDM Transmitter System

HT3580H

The ARRIS HT3580 series Quad-Density Full Spectrum Dense Wave Division Multiplexing (DWDM) Transmitter System provides high performance and a high rack density forward path transmission solution for Cable TV service providers.

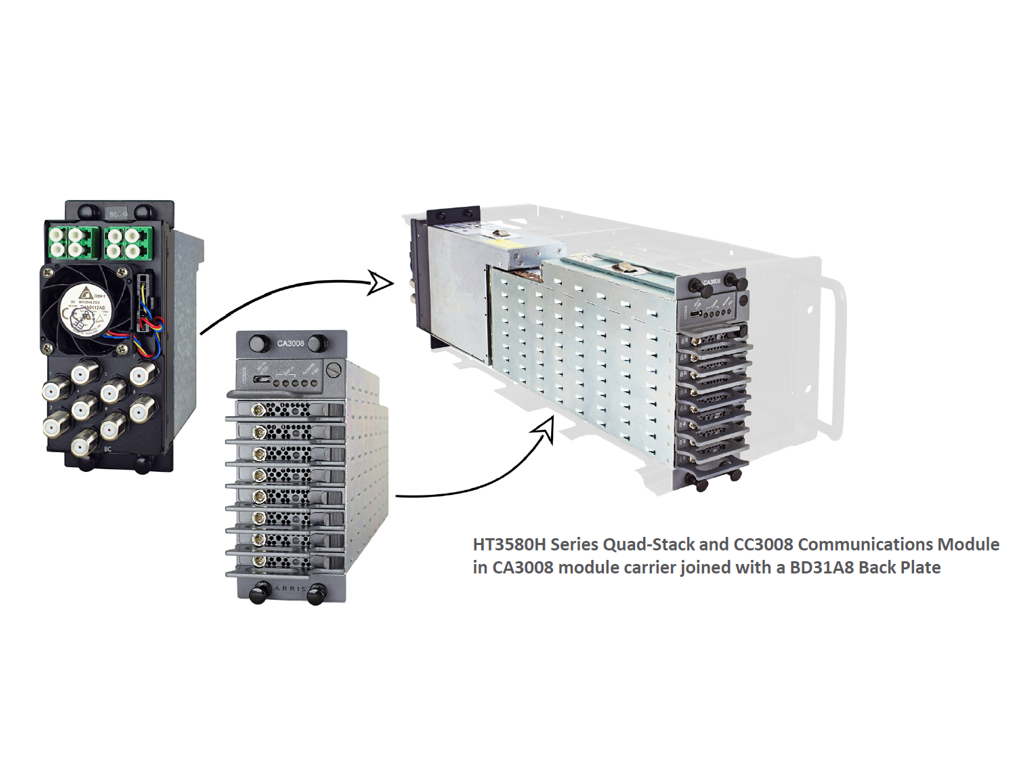

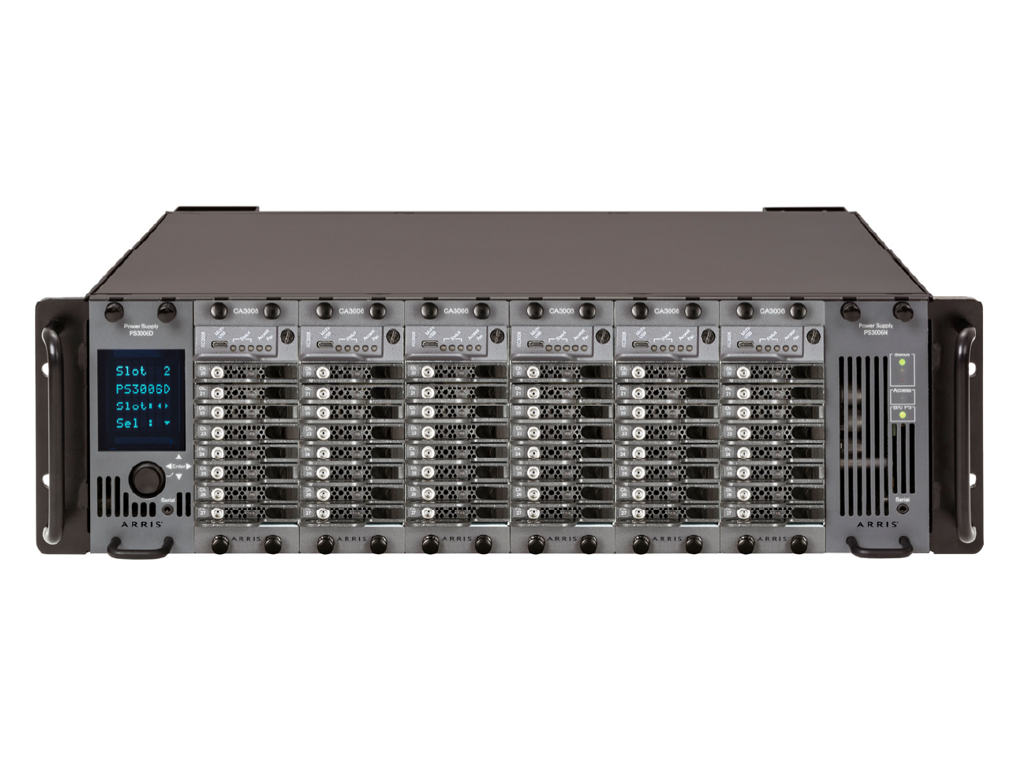

The high density packaging design allows up to eight HT3580H series high performance transmitters plus a CC3008 Communications Control Module to be stacked vertically and contained by the CA3008 module carrier, requiring only two chassis slots of a 3RU chassis. The compact solution supports up to 48 transmitters in a CH3000 chassis, including redundant power supplies.


Features

  • DWDM transmitter: up to 16 wavelengths on ITU grid
  • Hot plug-In/Out, individually replaceable transmitter modules
  • Optimized for full spectrum all QAM loading
  • Manual or Automatic Gain Control (AGC) modes
  • Low power consumption
  • Industry's highest DWDM rack density: 48 transmitters per 3RU chassis, with redundant power supplies and optical multiplexing
  • Front access -20dB input test point
  • Front panel laser On/Off control
  • Local and remote status monitoring features
