ARRIS / AURORA
FA3527M

High Performance, Multiport Optical Amplifier

FA3527M

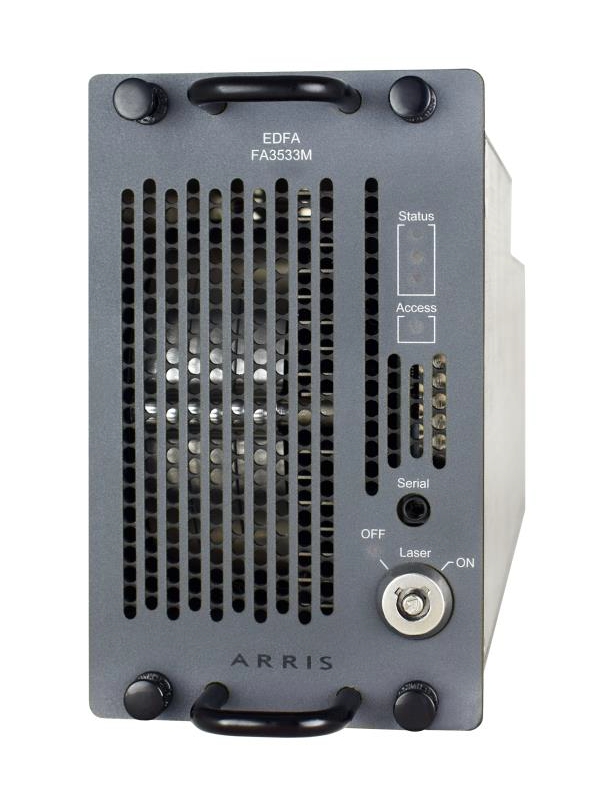

The ARRIS FA3527M, FA3530M, and FA3533M are high performance, multiport 1550 nm optical amplifiers. The high power output of these amplifiers is ideally suited for video distribution in RFoG and RFPON network architectures.
In RFoG applications, the 8-port FA3527M and 8-port FA3530M EDFA at the headend amplifies and distributes the 1550 nm broadcast video signal to over 250 residential customers, over 8 typical RFoG network segments, each with 32 connected endpoint devices. Comparably, the 16-port FA3533M amplifies and distributes the 1550 nm broadcast signal to over 500 customers over 16 typical RFoG network segments, each with 32 connected endpoint devices.


Features

  • High-power, multiport EDFAs for RFoG and RFPON applications
  • FA3527M: Up to 18dBm output power to each of 8 ports
  • FA3530M: Up to 21dBmoutput power to each of 8 ports
  • FA3533M: Up to 21dBm output power to each of 16 ports
  • Front panel laser On/Off interlock switch
  • Hot plug-in/out
  • local and remote status monitoring and control
