CPM 4 CLEARPATH Module

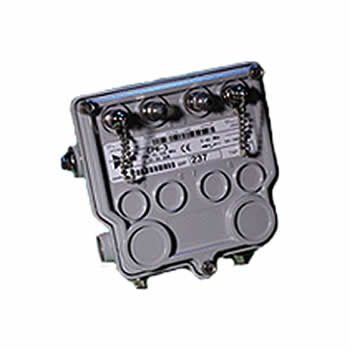

Electroline's CPM 4 is a return path switch that locates the source of ingress in a hybrid fiber/coax (HFC) network. To determine where the ingress is located, the CPM 4 selectively switches a 6 dB pad into the return path. The CPM-4 utilizes a smooth switching transition that will not disrupt high-speed data services. The effect of the return path switching is monitored and displayed on a spectrum analyzer at the headend.


Features

  • CIM/TPS-Integration
  • 90 volt, 15 amp power passive
  • Smooth, non-disruptive switching transition
  • 2 test points on the return band
  • Optional filter for switching off a portion of the return band
  • Switching time 10 ms
  • Surge protected
  • Provides temporary fix for severe ingress
  • Single agile FSK carrier
