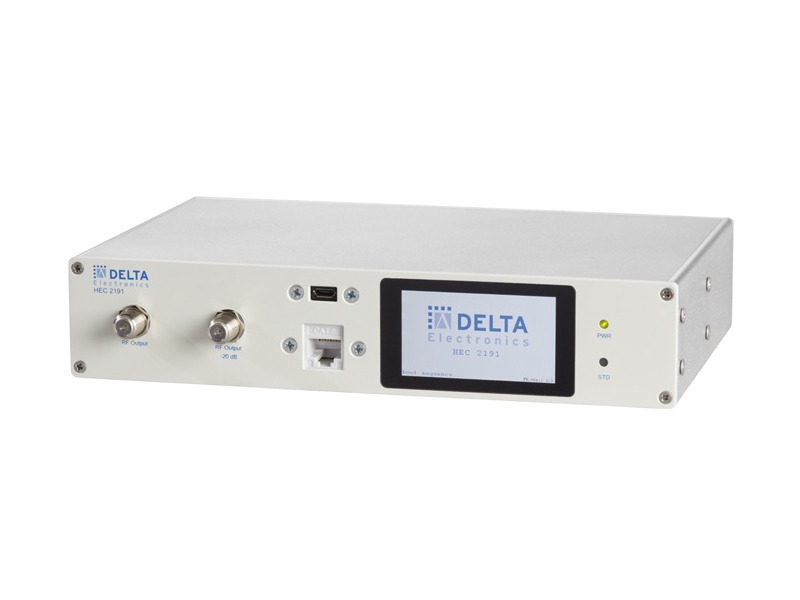

HEC 2191

Headend Controller (HEC) for DELTANET FOSTRA-F

HEC 2191

Cost-effective remote control system for HFC / RFoG nodes / amps.


  • HEC in operation with DELTANET FOSTRA-F Software acc. to EN 60728-14
  • Compact FSK-transmitter as desktop unit, with included mounting kit also as 1 RU 19-inch device
  • Variable Transmit Frequency Range 860.480-879.515 MHz
  • Web Server with DELTANET application, Linux operated
  • 1 RF output (selectable on front or rear panel) with RF test point
  • Electronic level adjustment of output
  • 100 Base-T RJ-45 connection, USB-port for serial connection
  • Including basic license for 32 FOSTRA-F modules (subscribers), expandable to 500, 1000 or 5000 FOSTRA-F modules
  • HEC can host the MySQL database. Alternatively the data base can be installed on an external server, thus one or multiple HECs will act as RF gateway only
  • Recommended for more than 500 subscribers
