Video Headends

ARRIS
CherryPicker DM 6400

Digital Application Platform

 Request more information/offer

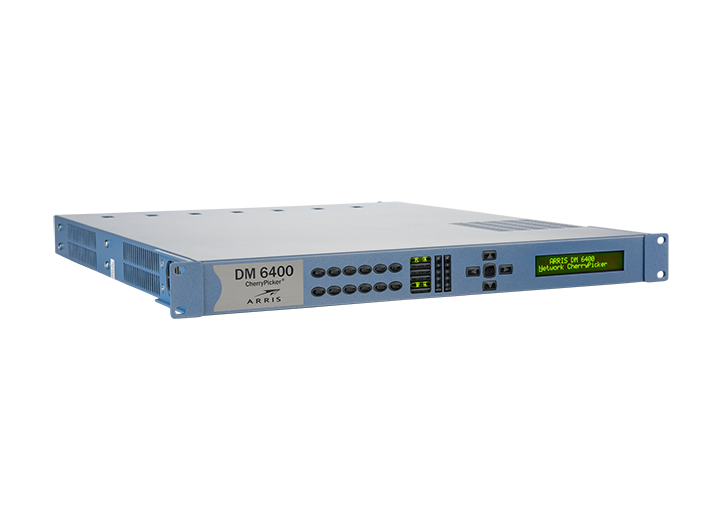

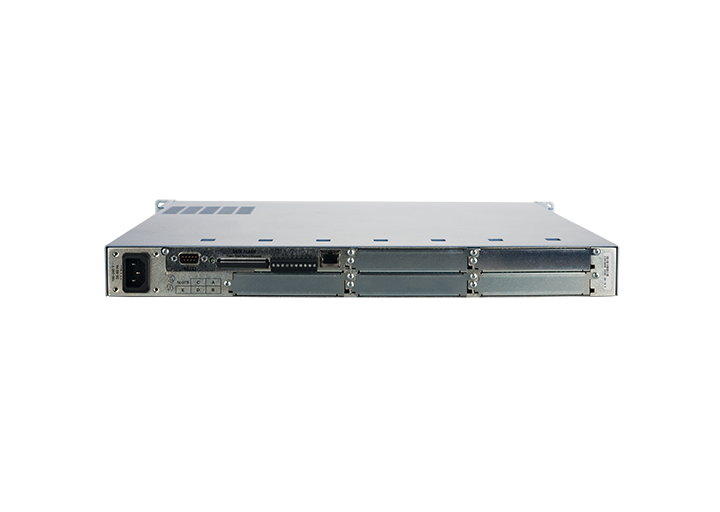

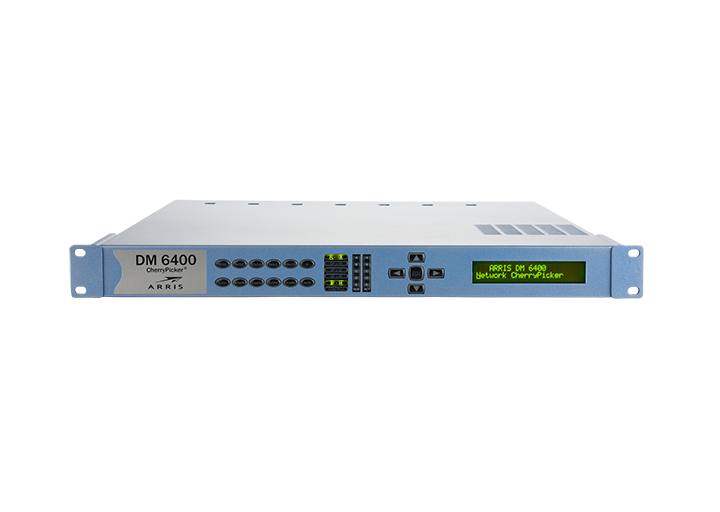

The Arris DM 6400 CherryPicker delivers unparalleled quality and reliability for networking, distributing and processing both standard-definition (SD) and high-definition (HD) services. It offers a wide array of digital video applications, including grooming of custom channel lineups, rate shaping and statistical remultiplexing, localized digital ad insertion, and graphic overlay and SqueezeBack. The DM 6400 is a compact (1 RU) chassis with five slots which can be equipped with either 4 port ASI or GbE modules. A powerful new DSP card (optional) now supports Motion and Static Graphic Overlays and SqueezeBack using internal and external sources via SDI (Serial Digital Interface) Key and Fill Video.

Features

• Seamless program splicing and switching
• Variable number of programs per output
• Configurable minimum and maximum bit rates per program
• Configurable relative recoding priorities between programs
• Digital ad insertion (optional)
• PID filtering and remapping
• PCR dejittering and restamping
• PAT and PMT computation and insertion
• DVB-ASI aggregation
• SI and PSI processing
• Statistical multiplex pools
• Data insertion
• Synchronization of data and video
• CBR to VBR conversion / VBR to CBR conversion
• Bit rate conversion CBR to CBR, VBR to VBR
• SD/HD rate shaping
